7.8 Inch Widescreen DDU Installation
1. Screw mount to your wheel base
-
2. Attach DDU to the mount with the M6 Screw and nut. Adjust to your desired height and angle before tightening screw.
*note: the nut should fit inside the groove of the mount as shown
3. Plug in to your PC via both USB-C Ports
left port for LEDS,
right port for vocore screen
-
4. Install Vocore driver found at https://simhubdash.com/Drivers/VOCOREScreenSetup.exe
*select “VOCORE LCD”

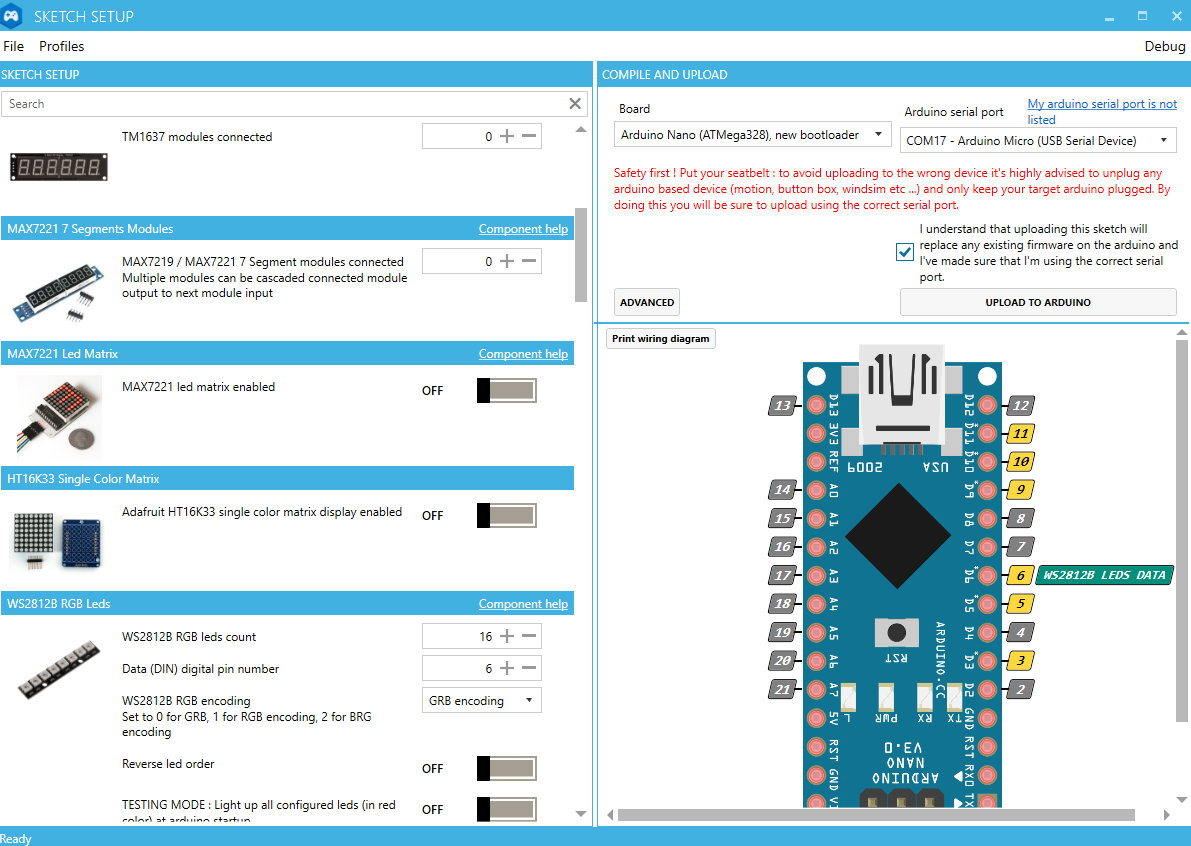

5. To set up the LED's open up SimHub and click on "Arduino" on the left panel and under "My Hardware" select "Single Arduino" and press "Open Arduino Setup Tool". Click "Start From Scratch" once prompted.
-
6. In the next screen on the left panel scroll down to WS2812B RGB LED and set the count to 16. Make sure DIN is set to 6 (it usually is by default).
-
7. On the right panel in the "Board" dropdown menu select "Arduino Nano (ATMega328), New Bootloader" and under Ardruino Serial Port select whichever port that usb is plugged into.
-
8. After everything is selected check the "I understand" box and press "Upload to Arduino". Now everything is properly set up and you can begin customizing your screen and leds.
9. To ensure you screen is installed now head over to the Devices tab in SimHub in the left panel and select "Add New Device". Scroll all the way down to Vocore and select "Generic Vocore Screen"
-
10.You can now set up your screen with whichever dash you would like

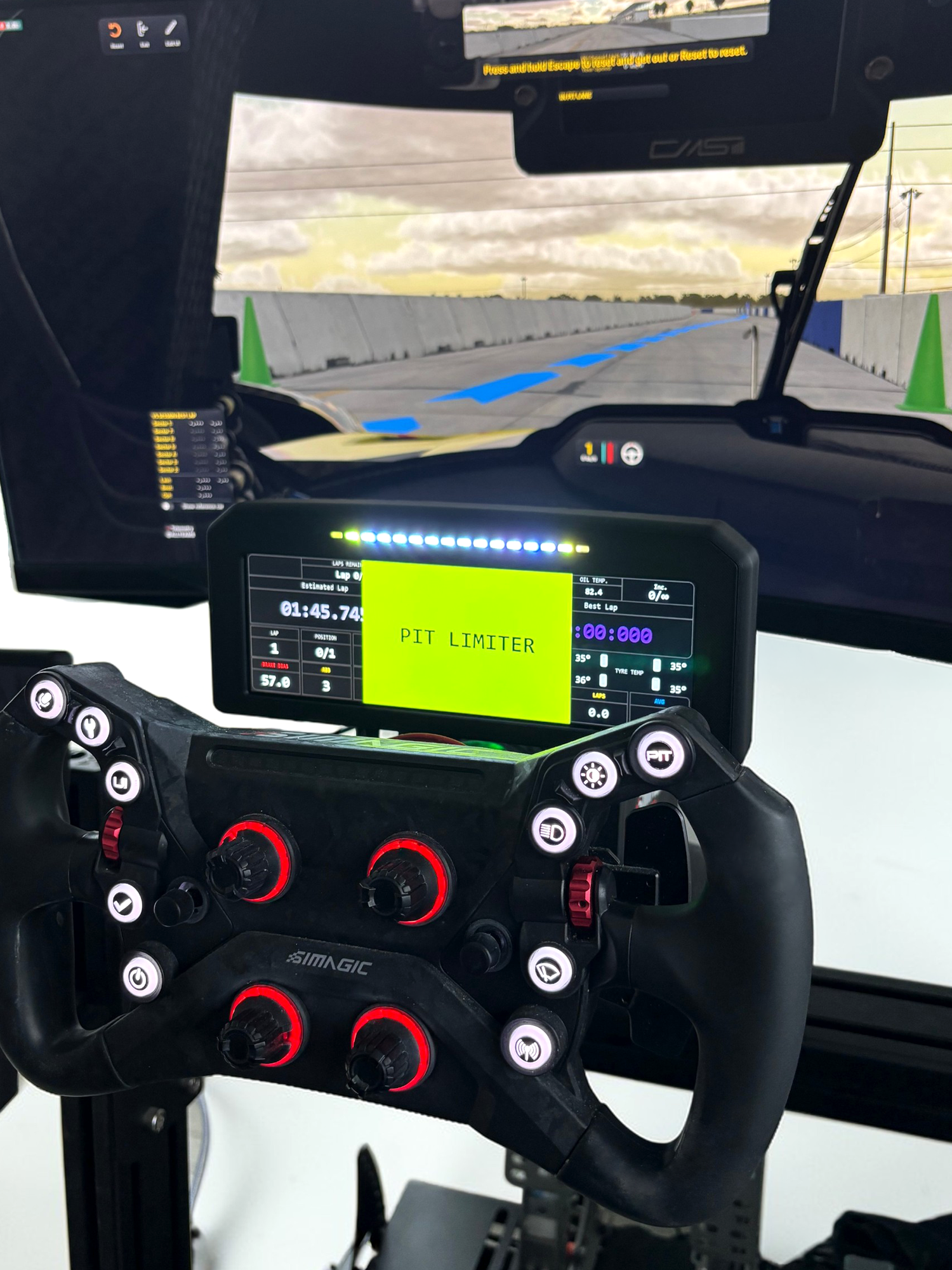

For the NCRD Dash click here
For the Lovely Dash click here
-
Once the dashes are installed to your SimHub just go to your Dash Studio in SimHub and assign the dash you want to your Vocore Screen
**Note 1: there is a chance your dash will initially be upside down. This is common, to adjust the screens orientation head back over to the Devices tab and click your Generic Vocore Screen and press the "Screen settings" blue button on the right. Here you can adjust the Orientation / contrast etc.
-
***Note 2: SimHub require a license (which is a one time donation of any amount) in order to run in the full 60fps. It will only run in 30fps otherwise, which is useable but will cause the dashes to be choppy
Some other Dashes we recommend trying for wider range of compatibility and customization are:
-
Daniel Newman Racing
(which includes some LED profiles you can try for the RGB's)
-
Lovely Dash MXL
If you have any question or need help with the installation feel free to reach out at info@ncrd.online
Collapsible content
Disclaimer
Disclaimer
All products offered on this website are aftermarket accessories intended for use with sim racing rigs and related equipment. These products are designed as add-ons and are not standalone systems.
By purchasing and using our products, you acknowledge and agree that installation, integration, and use are performed entirely at your own risk. We are not responsible for any damage, malfunction, or loss that may occur to your existing equipment, including but not limited to sim rigs, electronics, consoles, PCs, or peripherals, as a result of the installation or use of our products.
It is the responsibility of the user to ensure proper compatibility, installation, and operation in accordance with their specific setup. We strongly recommend following all provided instructions and, where necessary, seeking professional assistance.
To the fullest extent permitted by applicable law, we disclaim all liability for any direct, indirect, incidental, or consequential damages arising from the use or misuse of our products.
Screen Not Turning On?
If your screen is not turning on, this is almost always related to a power supply issue, most commonly the USB cable or the PC’s USB port.
Please check the following:
- Use a USB-C to USB-A cable when connecting any of our screens to your PC to ensure stable and sufficient power.
- Try connecting the screen directly to your PC, bypassing any USB hubs, to rule out hub-related power issues.
- If you are using a USB hub, ensure it is a powered USB hub capable of delivering adequate power.
In most cases, following the steps above will resolve the issue.
