NCRD 10 inch DDU Install [M8 Mount]

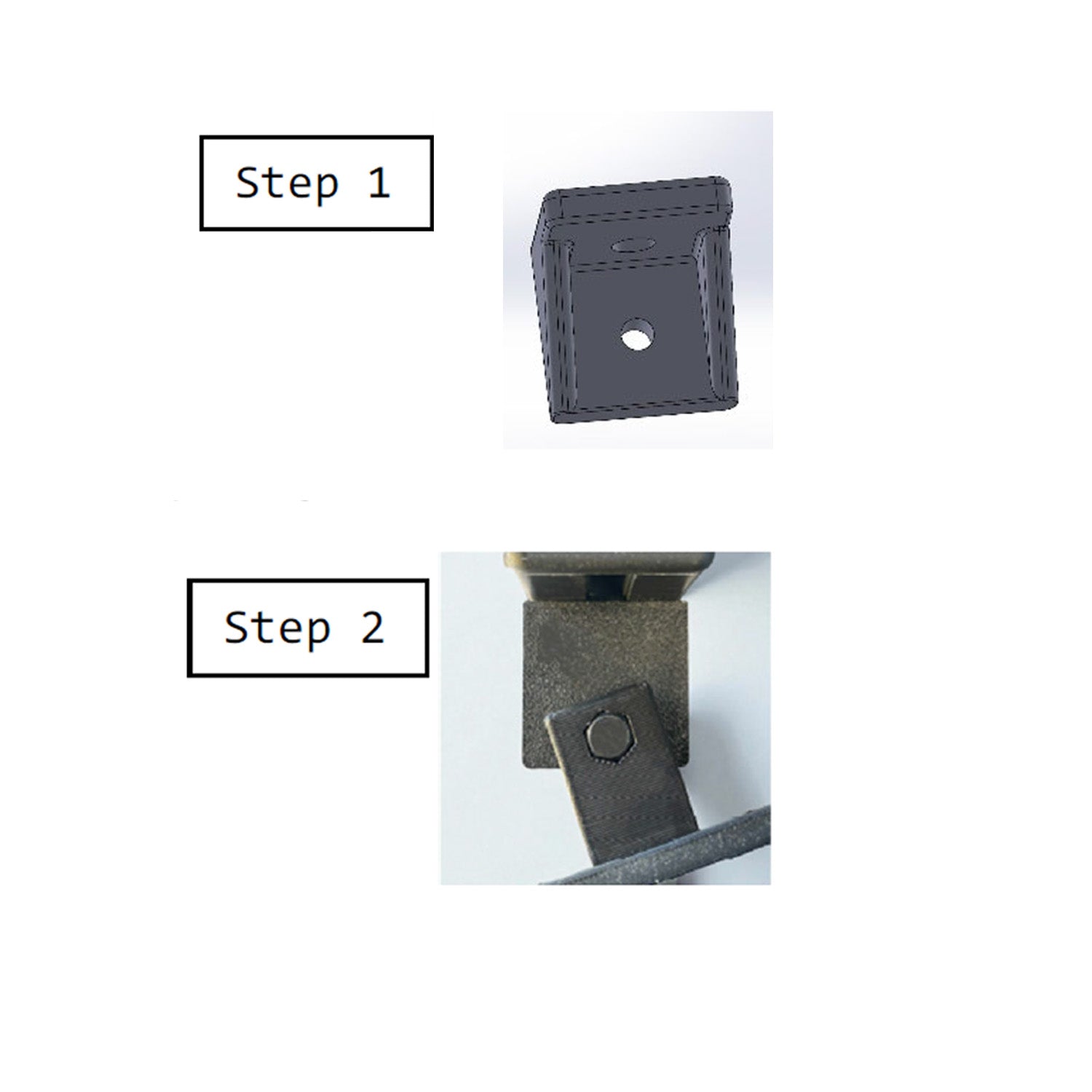

1.  1.  Screw mount to your aluminum profile with M8 screw + T-Slot

-

2.  Attach DDU to the mount with the M6 Bolt and nut. Adjust to you desired direction and tighten screw. Next adjust height and distance and tighten
the pre-attached M6 screw on the back of DDU



*note: the nut should fit inside the groove of the mount as shown

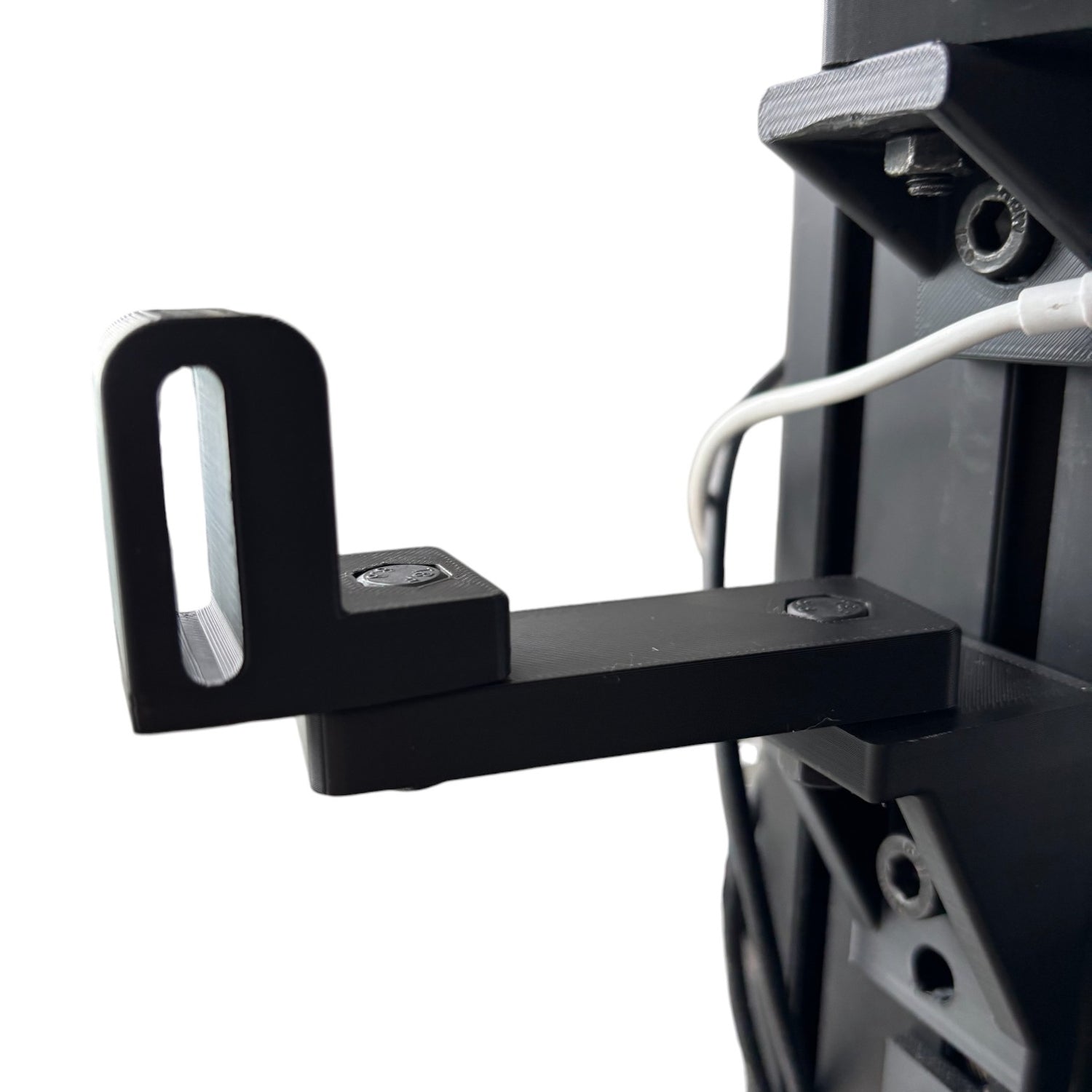

*there is an optional extender included that can be installed as such using another M6 Bolt + nut

-

Be sure to tighten all bolts before adding on the weight of the DDU

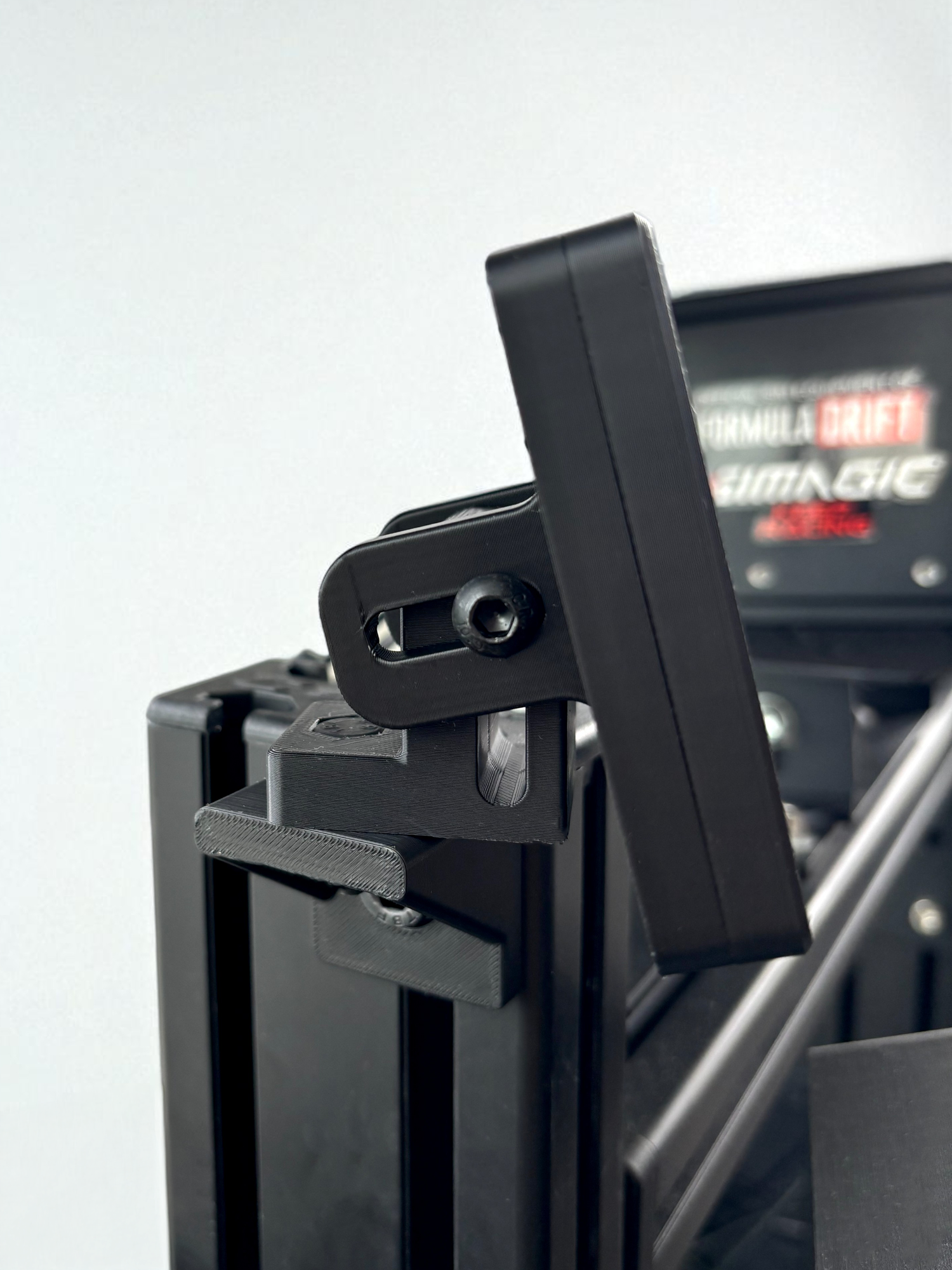

4040 mount for led flagbox

3. Next connect it to your PC via the USB-C port on the bottom and proceed to
open up SimHub.

*Use a USB-C to USB-A cable to connect to your PC to ensure there are now powering issues. If you are still having powering issues, and are using a USB Hub, try connecting directly to your PC, or use a powered USB Hub

[ download SimHub here: https://www.simhubdash.com/ ]

-

4. Install Vocore driver found at https://simhubdash.com/Drivers/VOCOREScreenSetup.exe

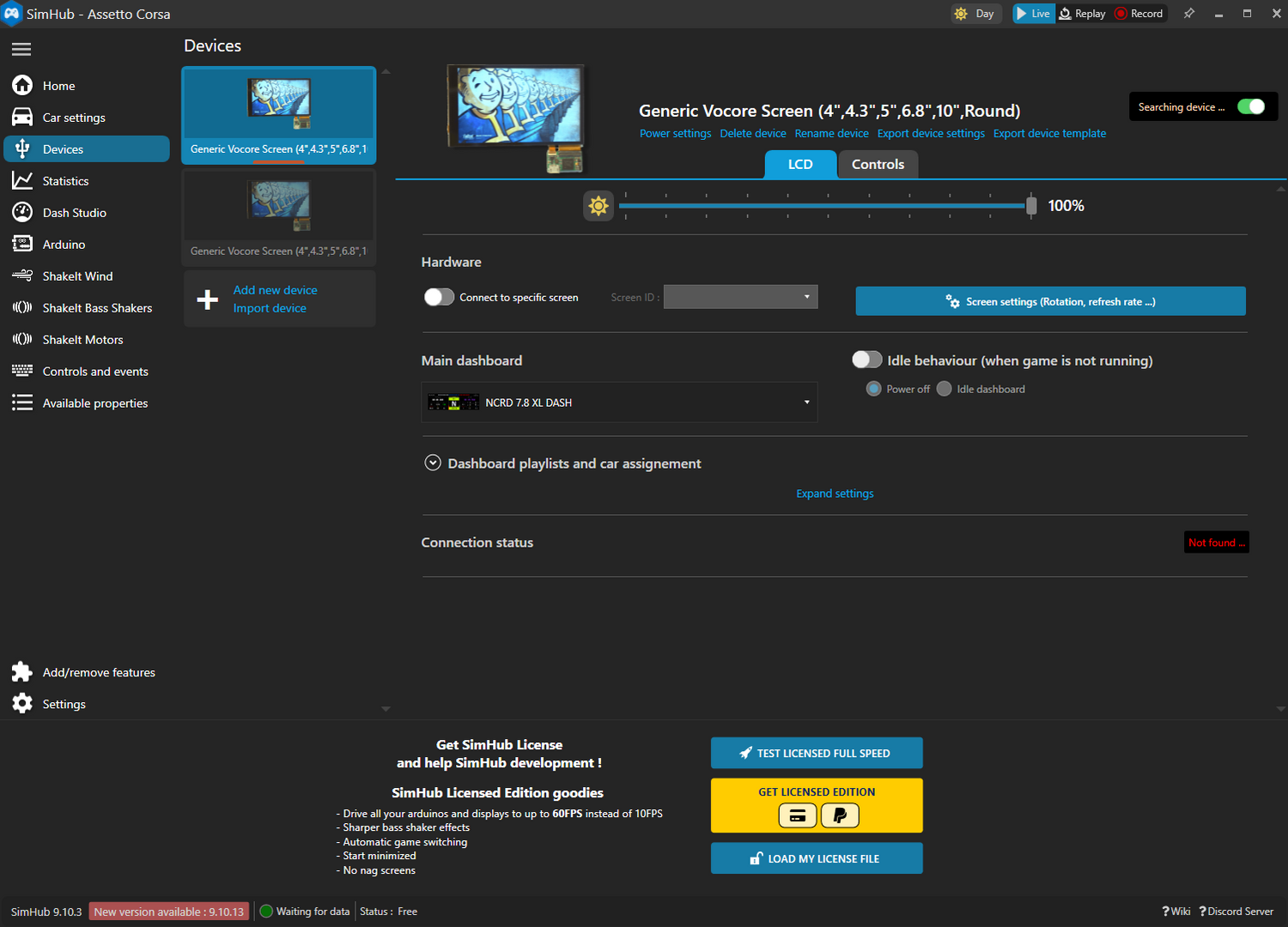

5. In the Devices section on the left menu select "Add new Device", and scroll down to"Generic Vocore Screen". Once added it should connect to your screen, and under the "Main Dashboard" tab select your dashboard of choice. It should now open when you open whichever SIM you are running.

-

If you need to rotate your screen you can do so in the blue "Screen Settings" button menu

-

-

-

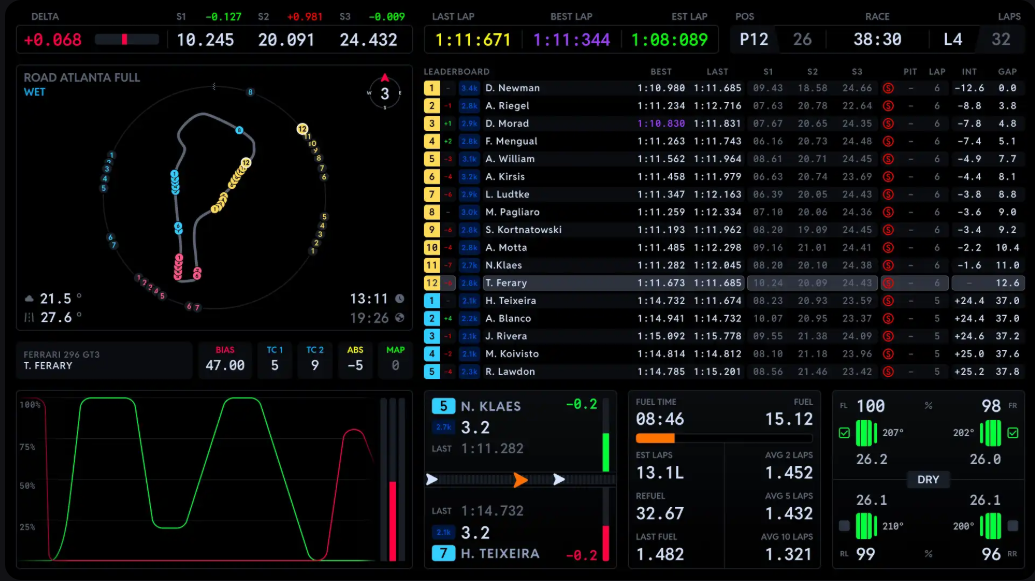

Some other Dashes we recommend trying for wider range of compatibility and customization are:

-

Daniel Newman Racing

For this size screen download Race Control Dashboard

-

Lovely Dash

If you have any question or need help with the installation feel free to reach out at info@ncrd.online

Disclaimer

Disclaimer
All products offered on this website are aftermarket accessories intended for use with sim racing rigs and related equipment. These products are designed as add-ons and are not standalone systems.
By purchasing and using our products, you acknowledge and agree that installation, integration, and use are performed entirely at your own risk. We are not responsible for any damage, malfunction, or loss that may occur to your existing equipment, including but not limited to sim rigs, electronics, consoles, PCs, or peripherals, as a result of the installation or use of our products.
It is the responsibility of the user to ensure proper compatibility, installation, and operation in accordance with their specific setup. We strongly recommend following all provided instructions and, where necessary, seeking professional assistance.
To the fullest extent permitted by applicable law, we disclaim all liability for any direct, indirect, incidental, or consequential damages arising from the use or misuse of our products.

Screen Not Turning On?

If your screen is not turning on, this is almost always related to a power supply issue, most commonly the USB cable or the PC’s USB port.

Please check the following:

  • Use a USB-C to USB-A cable when connecting any of our screens to your PC to ensure stable and sufficient power.
  • Try connecting the screen directly to your PC, bypassing any USB hubs, to rule out hub-related power issues.
  • If you are using a USB hub, ensure it is a powered USB hub capable of delivering adequate power.

In most cases, following the steps above will resolve the issue.
