NCRD Lap Timer Installation

1.  Screw mount to your
aluminum profile with M8 screw + T-Slot

-

2.  Attach DDU to the mount with the M6 Screw and nut. Adjust to your desired height and angle before tightening screw. Next adjust height and distance and tighten the pre-attached M6 screw on the back of DDU



*note: the bolt head should fit inside the groove of the mount as shown

*there is an optional extender included that can be installed as such using another M6 Bolt + nut

-

Be sure to tighten all bolts before adding on the weight of the Lap Timer

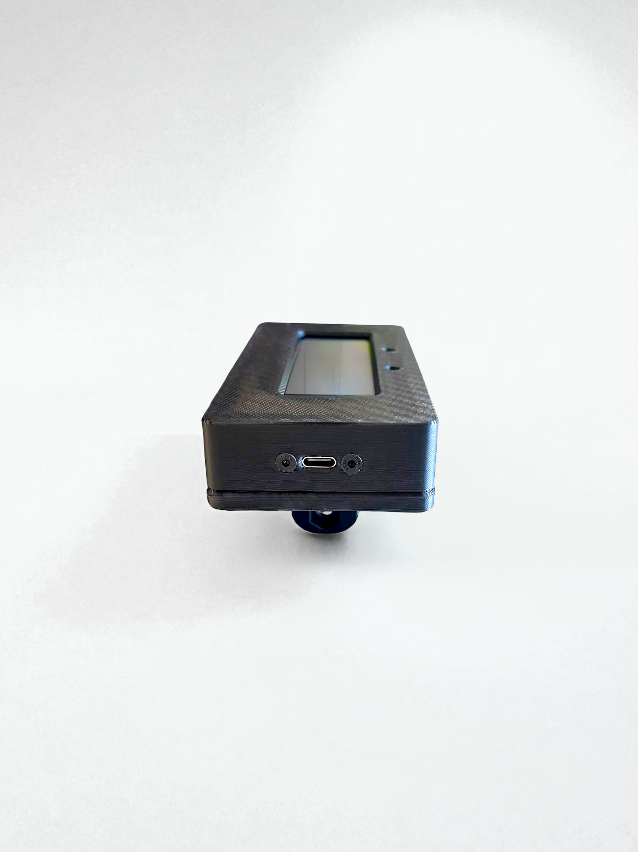

racelogic sim ddu

3. Plug in to your PC via USB-C Port

-

4. Install Vocore driver found at https://simhubdash.com/Drivers/VOCOREScreenSetup.exe

*select “VOCORE LCD”

5. Download and install SimHub at https://www.simhubdash.com/

-

6. Once you are in SimHub , on the devices panel on the left select Generic Vocore Screen. (If it is not already there press "Add Device" and scroll down to Vocore and Select Generic Vocore Screen.)

-

7. Now you can go to the dash studio and select any dash you want to use and assign it to the "Generic Vocore Screen"

-

For the NCRD Race Logic Lap Timer Dash click here

*Install any fonts you don't already have on your PC to ensure correct spacing

If you need to you can rotate the screen orientation to any direction pending on how you have it mounted to your rig.

To edit the orientation under Devices select "Screen Setting" and edit the "orientation" category

If you have any question or need help with the installation feel free to reach out at info@ncrd.online

Disclaimer

Disclaimer
All products offered on this website are aftermarket accessories intended for use with sim racing rigs and related equipment. These products are designed as add-ons and are not standalone systems.
By purchasing and using our products, you acknowledge and agree that installation, integration, and use are performed entirely at your own risk. We are not responsible for any damage, malfunction, or loss that may occur to your existing equipment, including but not limited to sim rigs, electronics, consoles, PCs, or peripherals, as a result of the installation or use of our products.
It is the responsibility of the user to ensure proper compatibility, installation, and operation in accordance with their specific setup. We strongly recommend following all provided instructions and, where necessary, seeking professional assistance.
To the fullest extent permitted by applicable law, we disclaim all liability for any direct, indirect, incidental, or consequential damages arising from the use or misuse of our products.

Screen Not Turning On?

If your screen is not turning on, this is almost always related to a power supply issue, most commonly the USB cable or the PC’s USB port.

Please check the following:

  • Use a USB-C to USB-A cable when connecting any of our screens to your PC to ensure stable and sufficient power.
  • Try connecting the screen directly to your PC, bypassing any USB hubs, to rule out hub-related power issues.
  • If you are using a USB hub, ensure it is a powered USB hub capable of delivering adequate power.

In most cases, following the steps above will resolve the issue.
