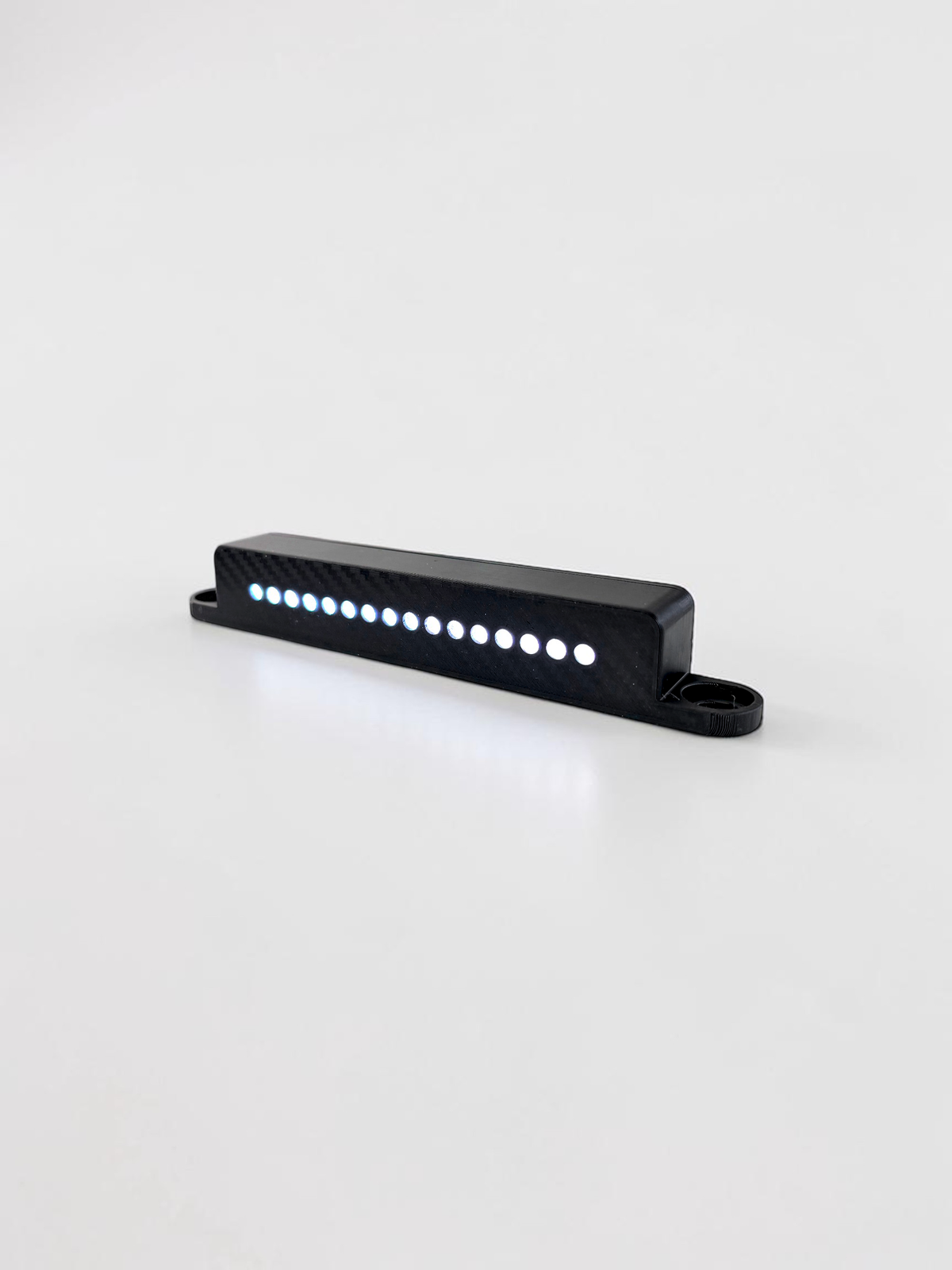

NCRD-REV16 Installation Instructions

1. Plug in to your PC via USB-C Port

(We recommend using USB-C to USB-A cables in order to avoid any powering issues)

2. To set up the LED's open up SimHub and click on "Arduino" on the left panel and under "My Hardware" select "Single Arduino" if this is your only Arduino plugged into your PC. If you have more than one REV strip, or any other Arudino devices already installed select "Multiple Arduinos" and press "Open Arduino Setup Tool".

Click "Start From Scratch" once prompted.

-

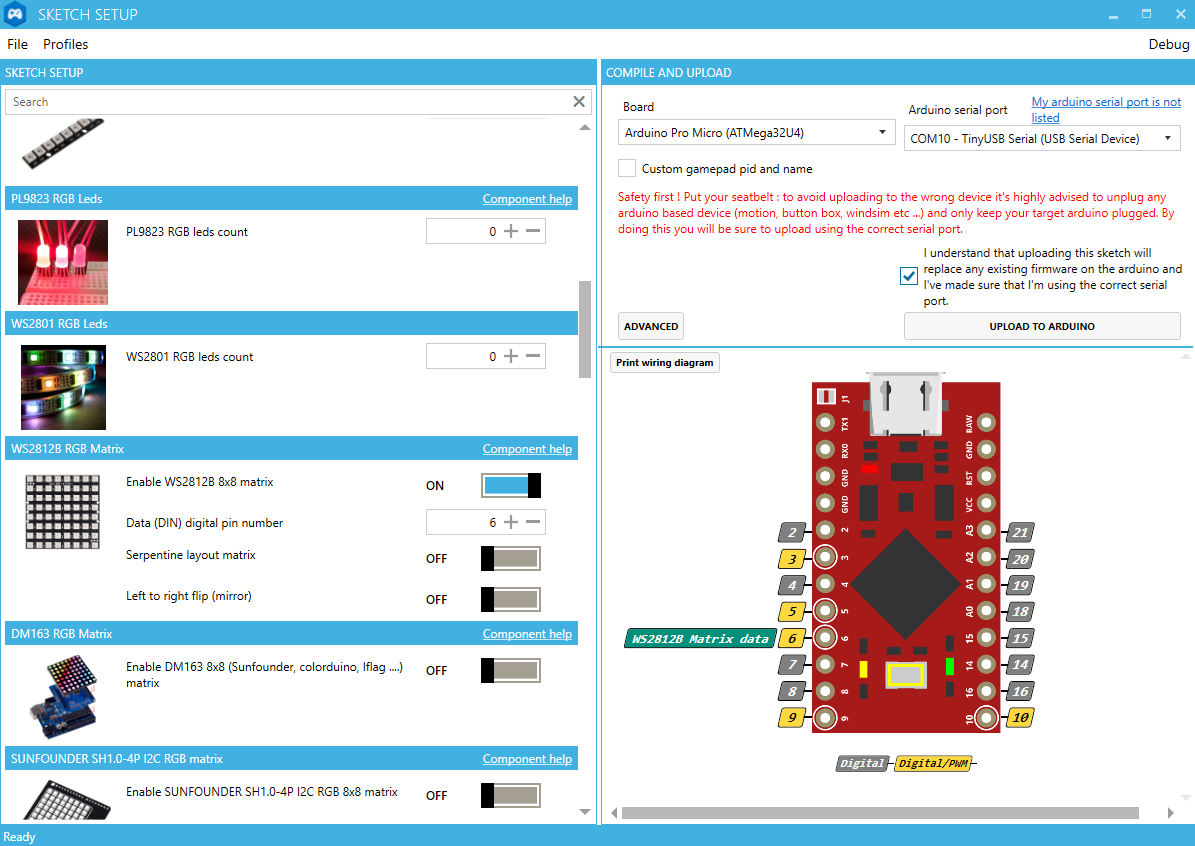

3. In the next screen on the left panel scroll down to WS2812B RGB LED and set the count to 16. Make sure DIN is set to 6 (it usually is by default).

-

4. On the right panel in the "Board" dropdown menu select "Arduino Pro Micro" and under Ardruino Serial Port select whichever port that usb is plugged into.

-

5. After everything is selected check the "I understand" box and press "Upload to Arduino". Now everything is properly set up and you can begin customizing your screen and leds.

6. If you bought a pair of rev lights, re-do the previous step for the second set of LEDs

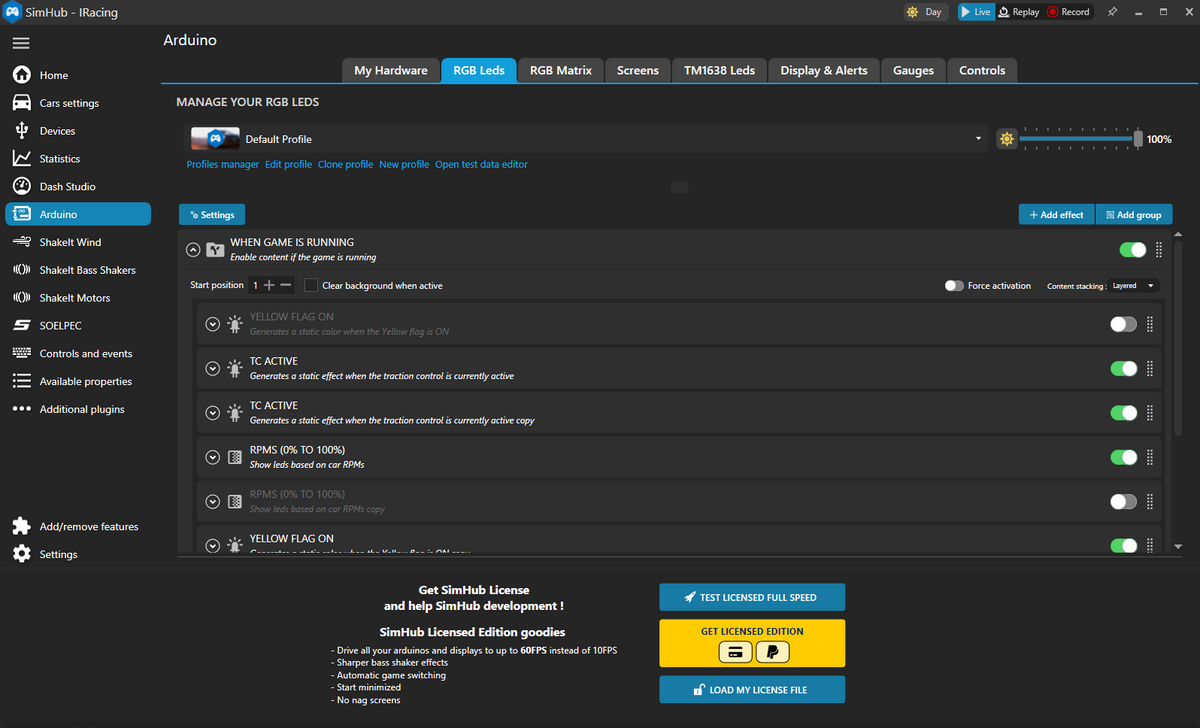

7. You can now head over to the Arduino "RGB Leds" page and customize your Rev Lights

-

For some wonderful premade LED Profiles visit Daniel Newman Racing

If you have any question or need help with the installation feel free to reach out at info@ncrd.online

Disclaimer

Disclaimer
All products offered on this website are aftermarket accessories intended for use with sim racing rigs and related equipment. These products are designed as add-ons and are not standalone systems.
By purchasing and using our products, you acknowledge and agree that installation, integration, and use are performed entirely at your own risk. We are not responsible for any damage, malfunction, or loss that may occur to your existing equipment, including but not limited to sim rigs, electronics, consoles, PCs, or peripherals, as a result of the installation or use of our products.
It is the responsibility of the user to ensure proper compatibility, installation, and operation in accordance with their specific setup. We strongly recommend following all provided instructions and, where necessary, seeking professional assistance.
To the fullest extent permitted by applicable law, we disclaim all liability for any direct, indirect, incidental, or consequential damages arising from the use or misuse of our products.

Screen Not Turning On?

If your screen is not turning on, this is almost always related to a power supply issue, most commonly the USB cable or the PC’s USB port.

Please check the following:

  • Use a USB-C to USB-A cable when connecting any of our screens to your PC to ensure stable and sufficient power.
  • Try connecting the screen directly to your PC, bypassing any USB hubs, to rule out hub-related power issues.
  • If you are using a USB hub, ensure it is a powered USB hub capable of delivering adequate power.

In most cases, following the steps above will resolve the issue.
