7.8" DDU Installation

1.  Screw mount to your wheel base

-

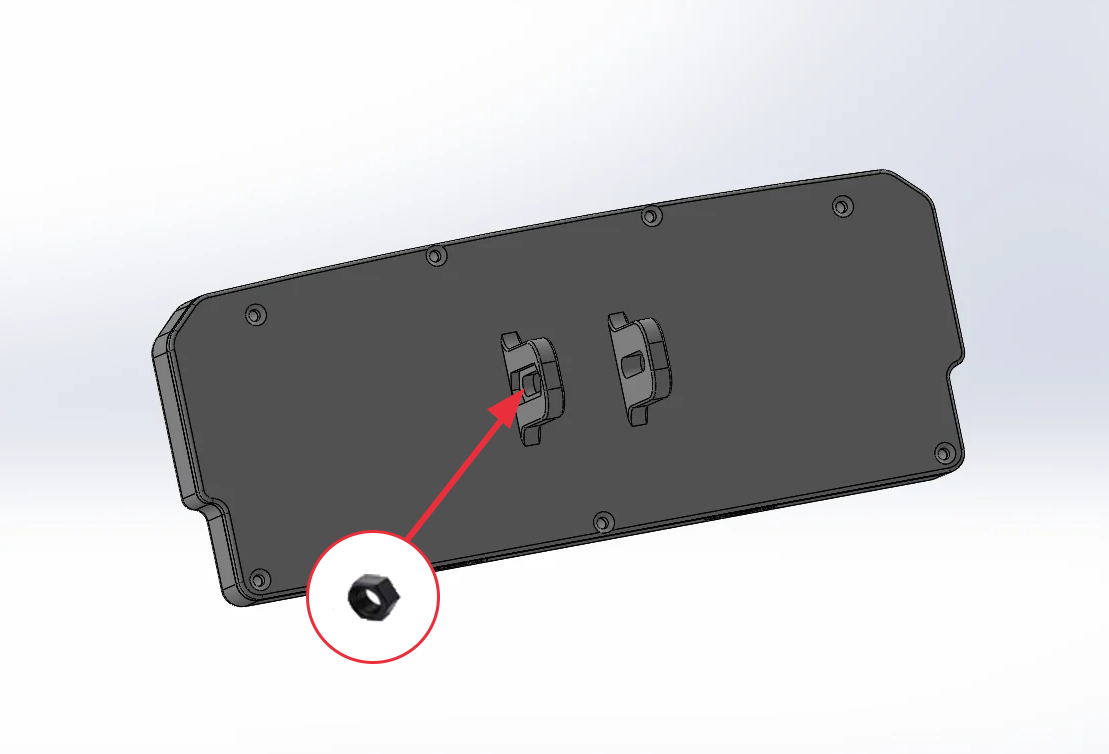

2.  Attach DDU to the mount with the M6 Screw and nut. Adjust to your
desired height and angle before tightening screw.



*note: the bolt head should fit inside the groove of the mount as shown

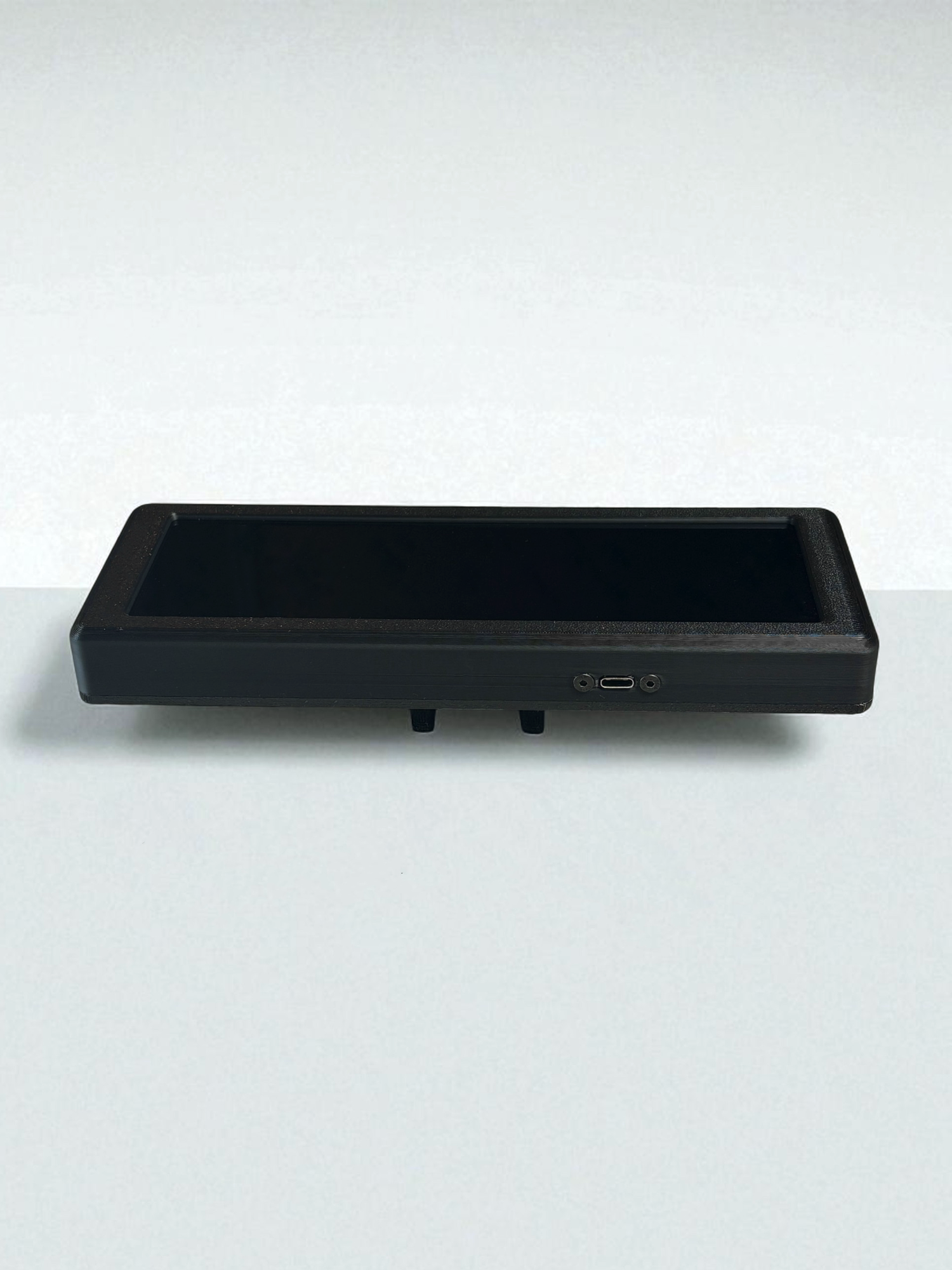

widescreen 7.8 inch ddu

3. Plug in to your PC via USB-C Port

-

4. Install Vocore driver found at https://simhubdash.com/Drivers/VOCOREScreenSetup.exe

*select “VOCORE LCD”

5. Download and install SimHub at https://www.simhubdash.com/

-

6. Once you are in SimHub , on the devices panel on the left select Generic Vocore Screen. (If it is not already there press "Add Device" and scroll down to Vocore and Select Generic Vocore Screen.)

-

7. Now you can go to the dash studio and select any dash you want to use and assign it to the "Generic Vocore Screen"

-

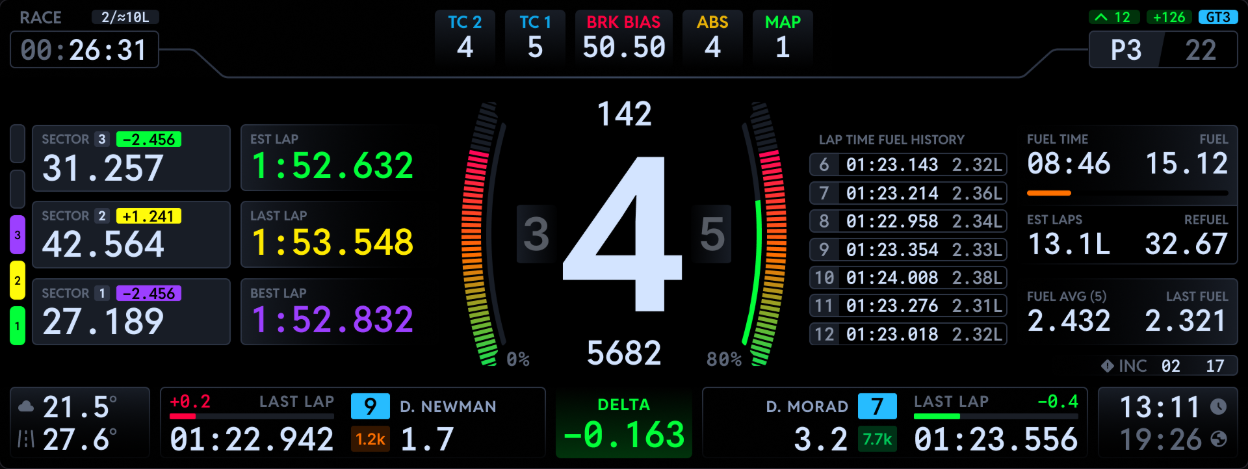

For the NCRD Widescreen Dash click here

If you need to you can rotate the screen orientation to any direction pending on how you have it mounted to your rig.

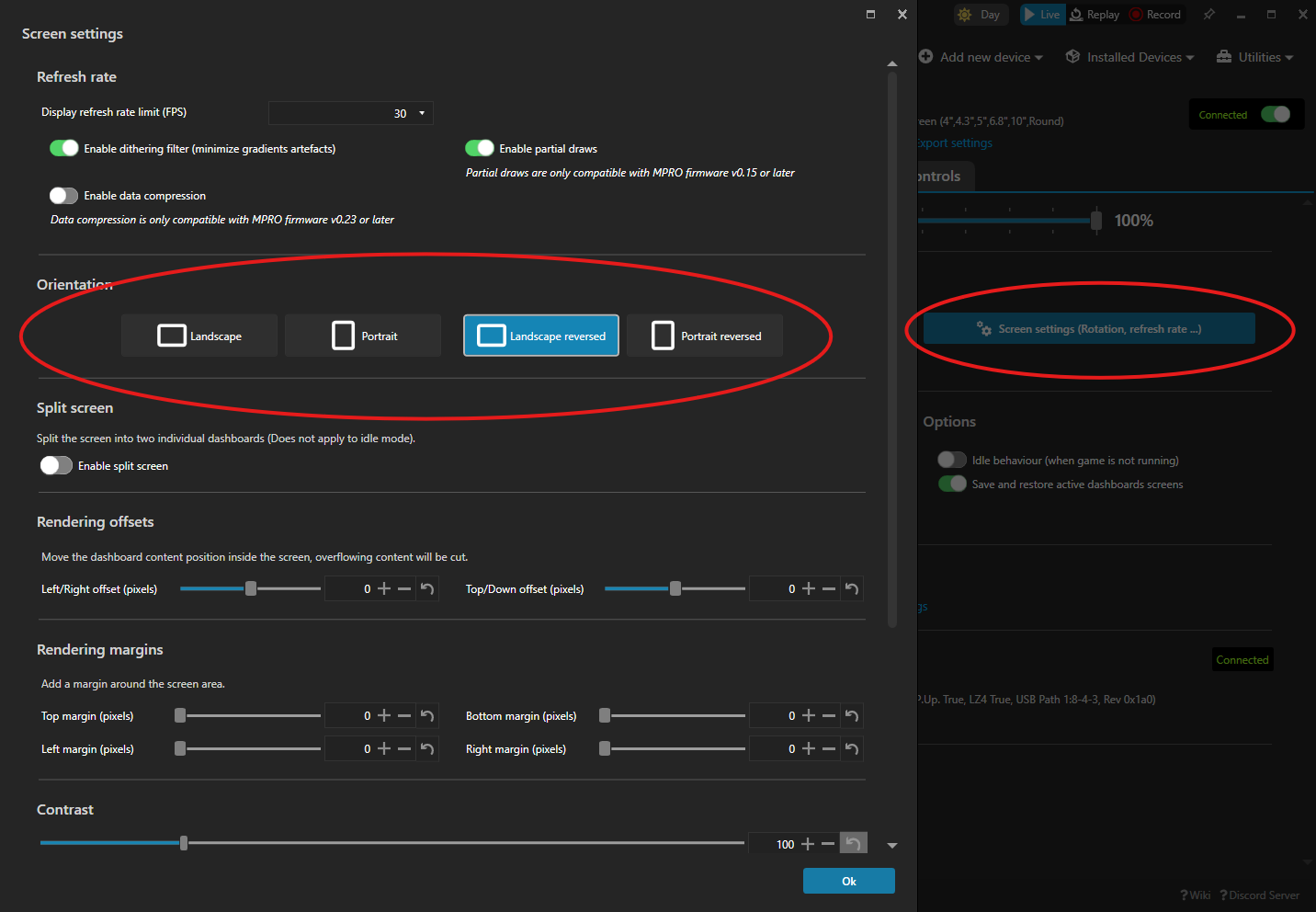

To edit the orientation under Devices select "Screen Setting" and edit the "orientation" category

Some other Dashes we recommend trying for wider range of compatibility and customization are:

-

Daniel Newman Racing

(which includes some LED profiles you can try for the RGB's)

-

Lovely Dash MXL

If you have any question or need help with the installation feel free to reach out at info@ncrd.online

Disclaimer

Disclaimer
All products offered on this website are aftermarket accessories intended for use with sim racing rigs and related equipment. These products are designed as add-ons and are not standalone systems.
By purchasing and using our products, you acknowledge and agree that installation, integration, and use are performed entirely at your own risk. We are not responsible for any damage, malfunction, or loss that may occur to your existing equipment, including but not limited to sim rigs, electronics, consoles, PCs, or peripherals, as a result of the installation or use of our products.
It is the responsibility of the user to ensure proper compatibility, installation, and operation in accordance with their specific setup. We strongly recommend following all provided instructions and, where necessary, seeking professional assistance.
To the fullest extent permitted by applicable law, we disclaim all liability for any direct, indirect, incidental, or consequential damages arising from the use or misuse of our products.

Screen Not Turning On?

If your screen is not turning on, this is almost always related to a power supply issue, most commonly the USB cable or the PC’s USB port.

Please check the following:

  • Use a USB-C to USB-A cable when connecting any of our screens to your PC to ensure stable and sufficient power.
  • Try connecting the screen directly to your PC, bypassing any USB hubs, to rule out hub-related power issues.
  • If you are using a USB hub, ensure it is a powered USB hub capable of delivering adequate power.

In most cases, following the steps above will resolve the issue.
