NCRD Flagbox Installation Instructions
1. Attach Mount Bracket to Sim Rig using M8 Bolt + T Slot Nut, included in
package
-
2. Attach Flagbox to Mount Bracket using the M6 Bolt + Nut included in
package. Proceed to adjust the position of the Flagbox and tighten all M6
Bolts once you have it positioned the way you’d like
*note: the nut should fit inside the groove of the mount as shown
3. Next connect it to your PC via the USC-C port on the bottom and proceed to
open up SimHub.
[ download SimHub here: https://www.simhubdash.com/ ]
-
4. Once in SimHub click the “Arduino” tab on the left panel, and under “My
Hardware” click either Single Arduino if installing 1 Flagbox or Multiple
Arduinos if installing 2 Flagbox’s, then press “Open Arduino setup tool”
and press “start from scratch”.
*Note for 2 flagboxes run this step twice (once for each flag box, but make sure to select "multiple arduinos" each time)

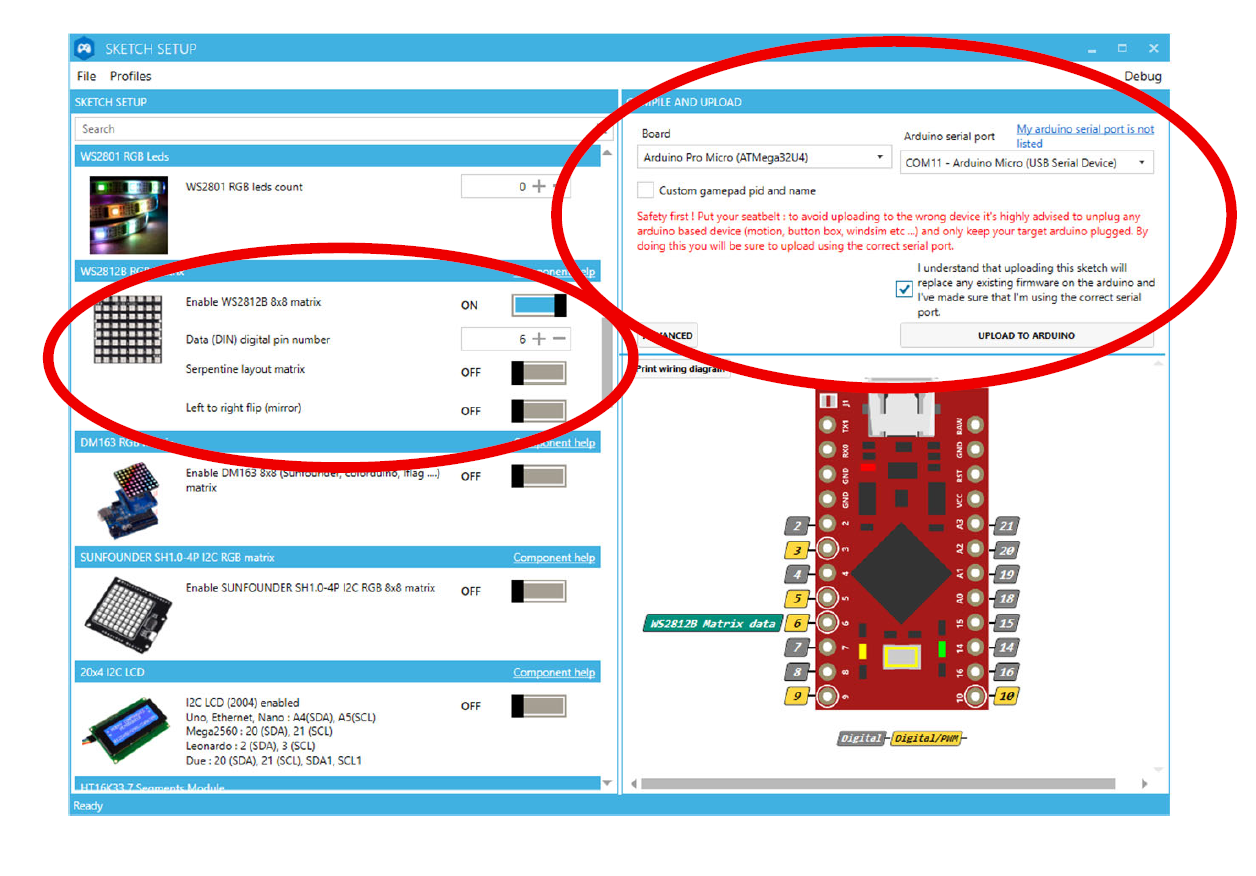

5. In setup tool scroll down to WS2812B RGB Matrix on the left side and switch it to “ON”. Next make sure the Data (DIN) digital pin number is set to 6.
-
6. Next on the right panel under “Board” select “Arduino Pro Micro
(ATMega32U4). Under “Arduino serial port” select the correct USB input
(should look something like COM# - Arduino Micro (USB Serial Device)
-
7. Next Checkmark the “I Understand” button and press “Upload to Arduino”
-
8. Once complete you can close this window and go back in to Simhub. Go to the RGB MATRIX tab in Simhub and now you can start customizing what you’d like by adding effects to queue actions based on what is happening in your sim.

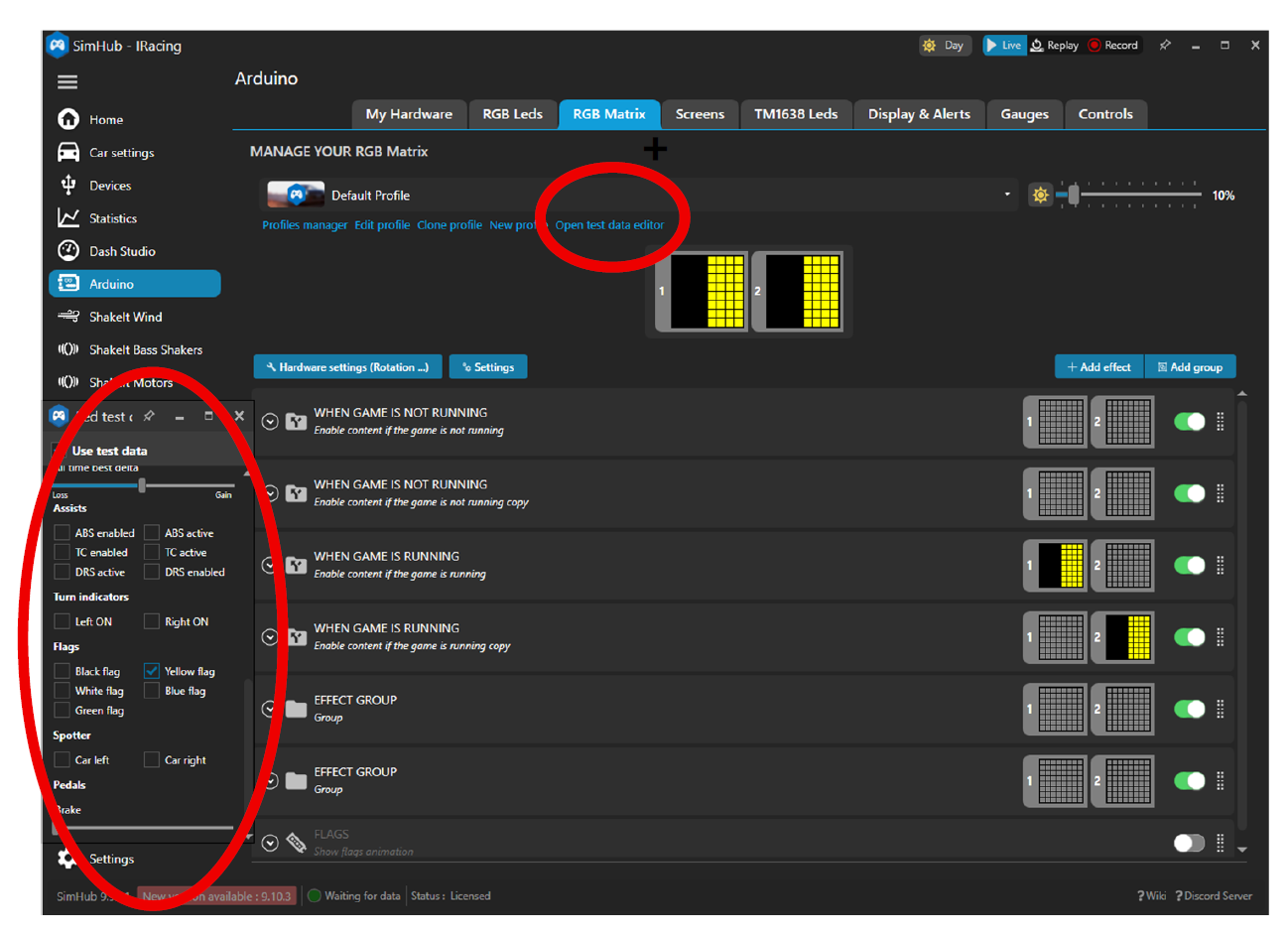

9. If you’re not sure if the Flagbox is working, simply press “Open test data Editor” and start pressing features you’d like to test.
**Note: there is a chance your Flagbox will initially be upside down or sideways. This is common, to adjust the screens orientation head back over to the RGB Matrix tab and click your "Hardware settings" blue button on the left. Here you can adjust the Rotation.
FOR 2 FLAG BOX SETUP
---
--
Option 1: Synced Flag Boxes
If you are using 2 Flagboxes, and want them to be identical: set RGB Matrix Content to "1" for both boxes in the 'Hardware Settings' screen
---
--

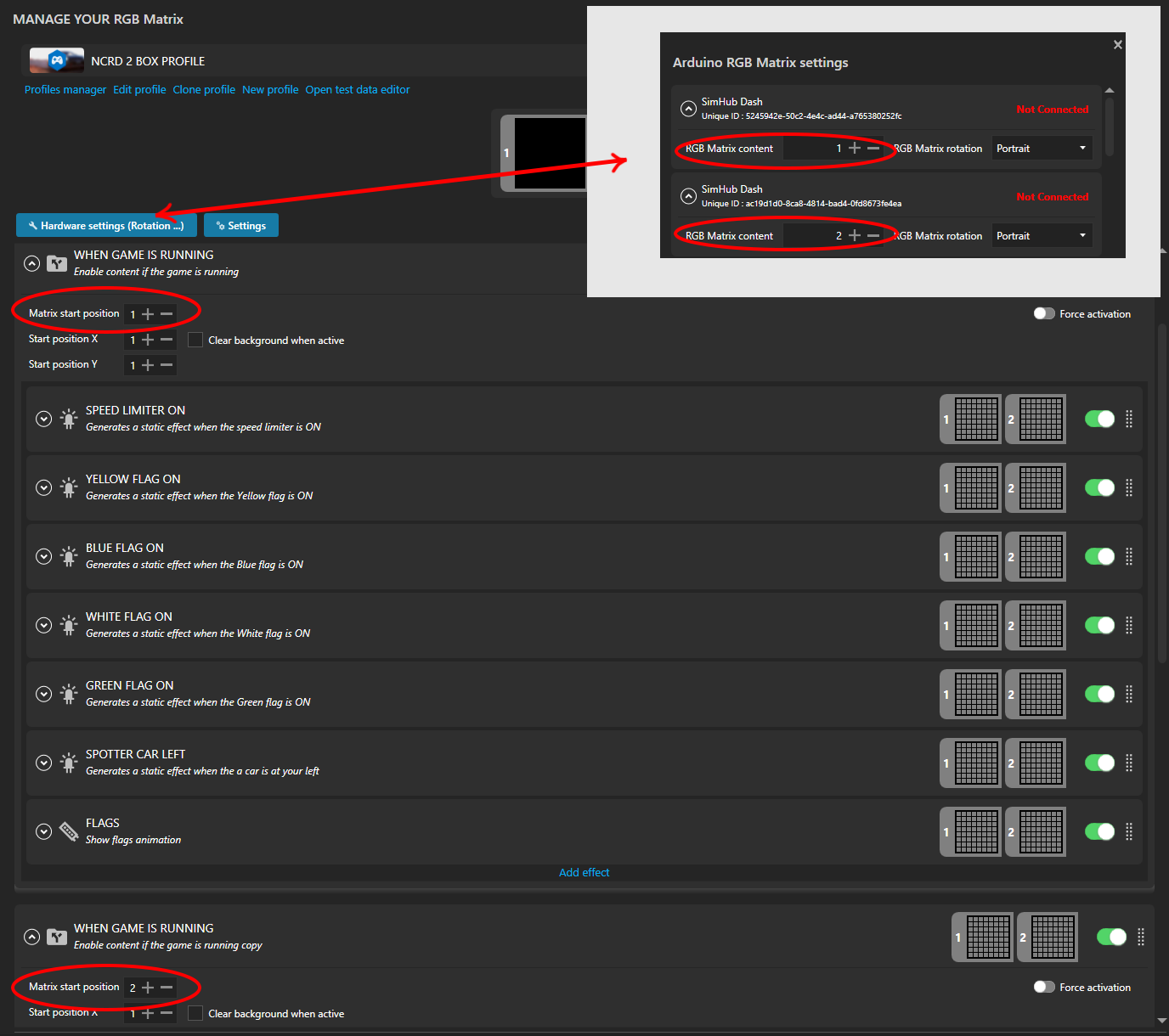

Option 2: Independent Flag Boxes
If you want each box to show different data independent of each other:
Set the first box to "1", and "2" for the second box
Next in the effect groups create 2 different "WHEN GAME IS RUNNING" Groups, and set one to Matrix Start Position 1, and the other Matrix Start Position 2
Now each of the groups control the effects of what the corresponding flag boxes will show (Matrix 1, and Matrix 2)
If you have any question or need help with the installation feel free to reach out at info@ncrd.online
Collapsible content
Disclaimer
Disclaimer
All products offered on this website are aftermarket accessories intended for use with sim racing rigs and related equipment. These products are designed as add-ons and are not standalone systems.
By purchasing and using our products, you acknowledge and agree that installation, integration, and use are performed entirely at your own risk. We are not responsible for any damage, malfunction, or loss that may occur to your existing equipment, including but not limited to sim rigs, electronics, consoles, PCs, or peripherals, as a result of the installation or use of our products.
It is the responsibility of the user to ensure proper compatibility, installation, and operation in accordance with their specific setup. We strongly recommend following all provided instructions and, where necessary, seeking professional assistance.
To the fullest extent permitted by applicable law, we disclaim all liability for any direct, indirect, incidental, or consequential damages arising from the use or misuse of our products.
Screen Not Turning On?
If your screen is not turning on, this is almost always related to a power supply issue, most commonly the USB cable or the PC’s USB port.
Please check the following:
- Use a USB-C to USB-A cable when connecting any of our screens to your PC to ensure stable and sufficient power.
- Try connecting the screen directly to your PC, bypassing any USB hubs, to rule out hub-related power issues.
- If you are using a USB hub, ensure it is a powered USB hub capable of delivering adequate power.
In most cases, following the steps above will resolve the issue.
